芯片組

CPU

Quad-core Cortex-A55

核心數/線程數

四核四線程

主頻

2.1GHz

內存

DDR4

SDRAM LPDDR4X-3200MHz on board

大小

默認2G(4G/8G可選)

存儲

SSD

默認16G(32G/64G可選)

以太網

LAN

2 * Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps)

音頻

 接口

1 * Front Audio Header (Line-Out + MIC)

1 * Amplifier Header

I/O

串口

1 * RS232/485 (COM1, DB9M/Header)

1 * 485（COM2）

1 * RS232 (COM3）

3 * RS232（4/5/6, Header)

GPIO

8路

USB

1 * USB3.0/OTG (TYPE-A, Rear IO) [4]

3 * USB2.0 (TYPE-A, Rear IO)

6 * USB2.0 (Header, Internal)

Display

1 * HDMI

1 * LVDS/EDP (Header)

1 * LVDS/MIPI (Header)

 可擴展

SATA

2 * SATA3.0 7P Connector [2] (with 2 * SATA Power Header)

1 * TF Card Slot

Mini PCI-E

1 * Mini PCI-E Slot (4G/3G+WIFI, with 1 * SIM Card Header / 1 * Nano SIM Card Slot)

M.2

1 * M.2 (NGFF) Key-B Slot (PCIE 3.0/PCIE2.0/USB3.0/SATA, 2242/3052) [2]

Recovery Button

1 * Recovery Button

Power Button

1 * Power Button

System Reset

1 * System Reset Header

Power LED

1 * Power LED Header

SPI

1 * SPI Header

TP I2C

2 * TP I2C Header

System FAN

1 * System FAN Header

Debug

2 * Debug Header

Can

2 * Can Header (Without IC, not support by default)

Cash

1 * Cash Header

AT or ATX Select

1 * AT or ATX Select Jumper

散熱方式

無風扇散熱鰭片

電源

12V DC-in

系統

Android 11, Linux

 結構

材質

金屬鈑金

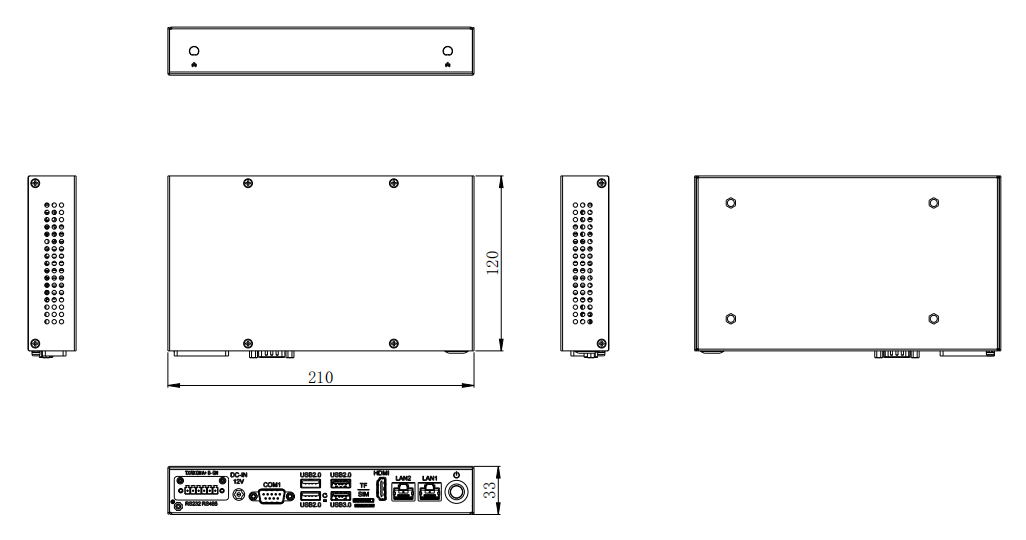

外形尺寸

210mm× 120mm×33mm

應用環境

工作溫度

-0°C ~60°C

存儲溫度

-20°C ~75°C
